Orelas Mining Flower Tires 20.5/70 23.5-25 16/70-20
Classification:
● Low Heat Generation ● Tire Tread Explosion-proof ● Strong Load Bearing & Anti-scratch
Contact：
Feature
● Low Heat Generation
Strong and flexible molecular chain rubber to reduce heat generation by 30%
New functional resin to improve the bonding ability of carbon black and rubber molecules
● Tire Tread Explosion-proof
Unique new steel belt structure
Application of belt steel wire with high-elongation & high-strength
● Strong Load Bearing & Anti-scratch
Reinforced tire body & strengthen tire structure for heavy load
Thickened sidewall protection rib & optimized tire profile to prevent scratching
Anti-Cut and Chip compound developed for mixed conditions of working in the mine and delivers materials out of mine services.
Parameter
| Specification | Ply Rating | Standard Rim |
Groove Depth (mm) |
Overall Diameter (mm) |
Section Width (mm) |
MAX Load Capacity(kg) | MAX Pressure (kPa) | TT/TL | Pattern Code | ||
| 10Km/h | 50Km/h | 10Km/h | 50Km/h | ||||||||
| 26.5-25 | 32PR | 22.00/3.0 | 35 | 1750 | 675 | 17000 | 11200 | 550 | 425 | TT/TL | E-3/L-3 |
| 23.5-25 | 20PR | 19.50/2.5 | 35 | 1615 | 595 | 10000 | 7300 | 375 | 300 | TT/TL | E-3/L-3 |
| 23.5-25 | 24PR | 19.50/2.5 | 35 | 1615 | 595 | 12500 | 8000 | 475 | 350 | TT/TL | E-3/L-3 |
| 20.5-25 | 20PR | 17.00/2.0 | 28 | 1615 | 595 | 9500 | 6000 | 450 | 325 | TT/TL | E-3/L-3 |
| 17.5-25 | 20PR | 14.00/1.5 | 26 | 1350 | 445 | 8250 | 5000 | 575 | 400 | TT/TL E-3/L-3 | |
| 20.5/70-16 | 14PR | 10.00E | 19 | 950 | 365 | / | 1600 | / | 390 | TT E-3/L-3 | |
Previous Page
Next Page
Keyword:
Orelas Mining Flower Tires 20.5/70 23.5-25 16/70-20

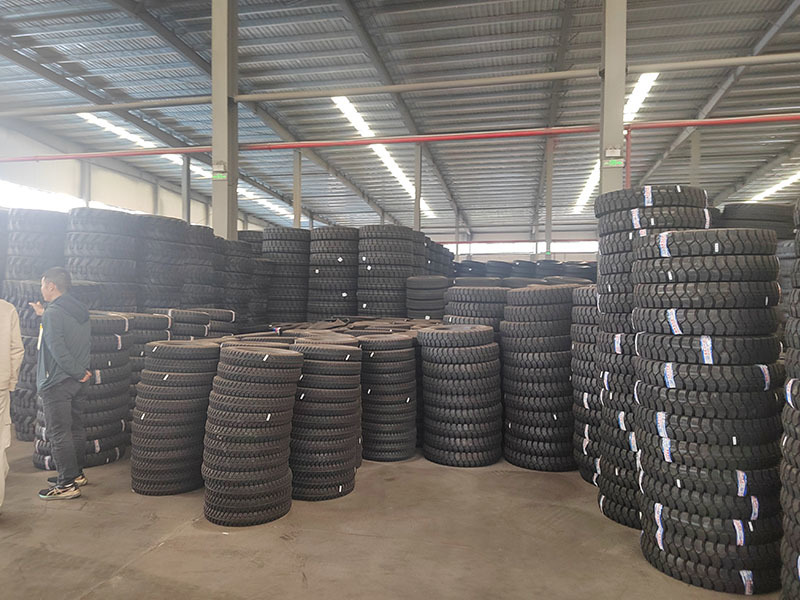

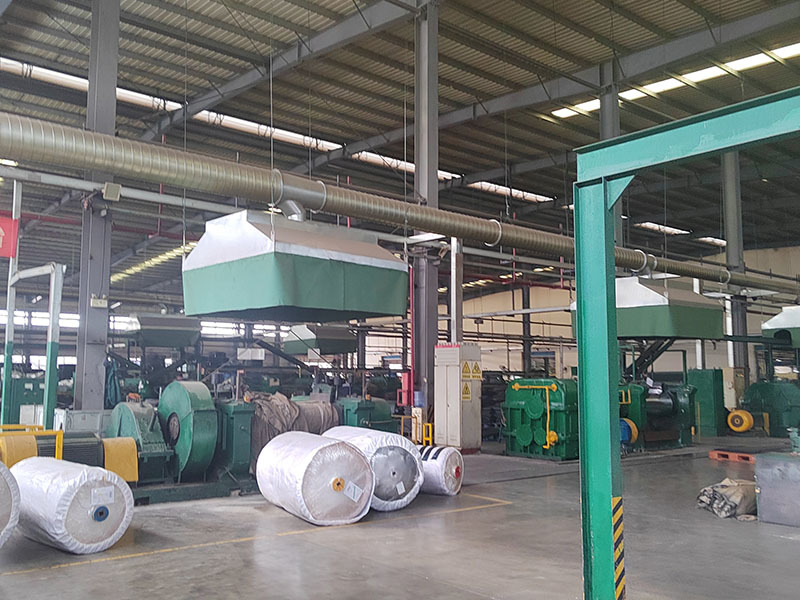

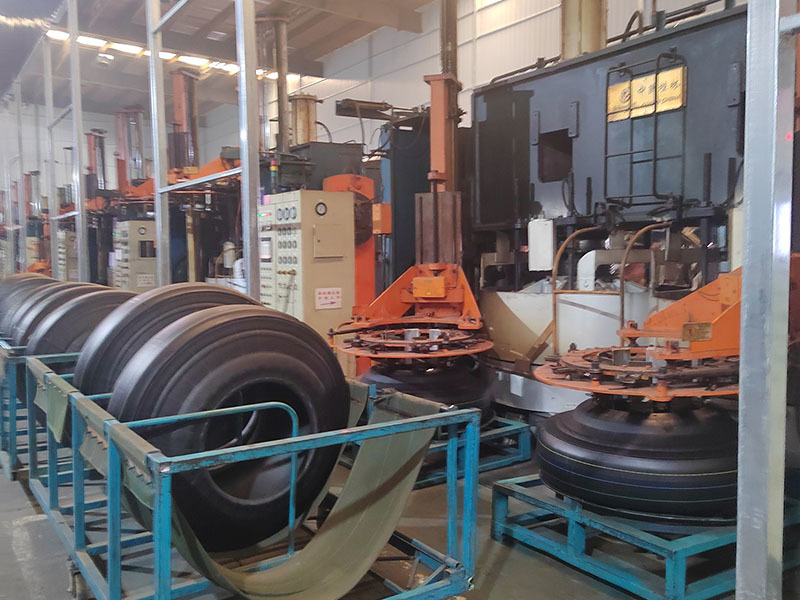

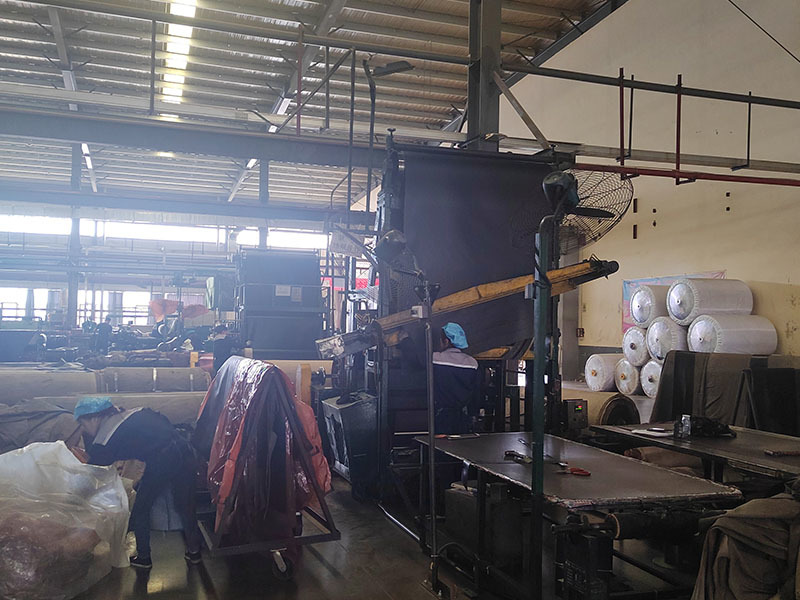

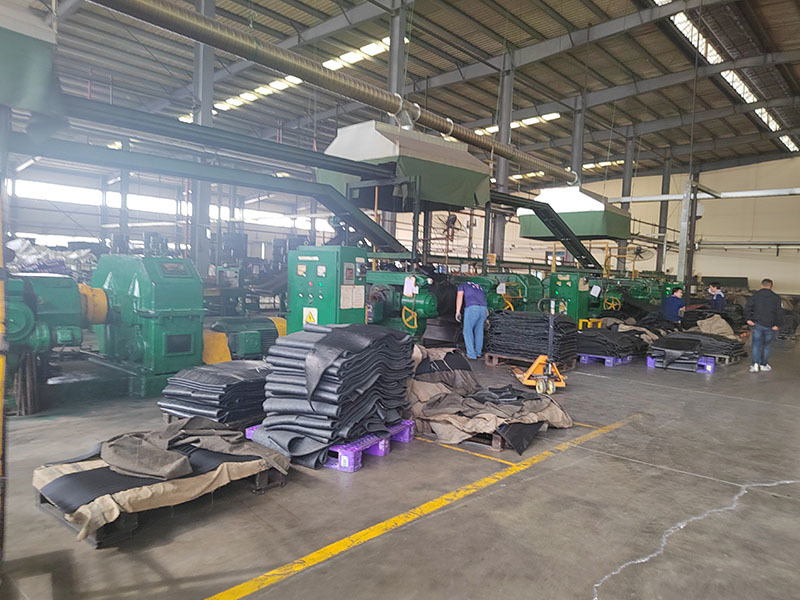

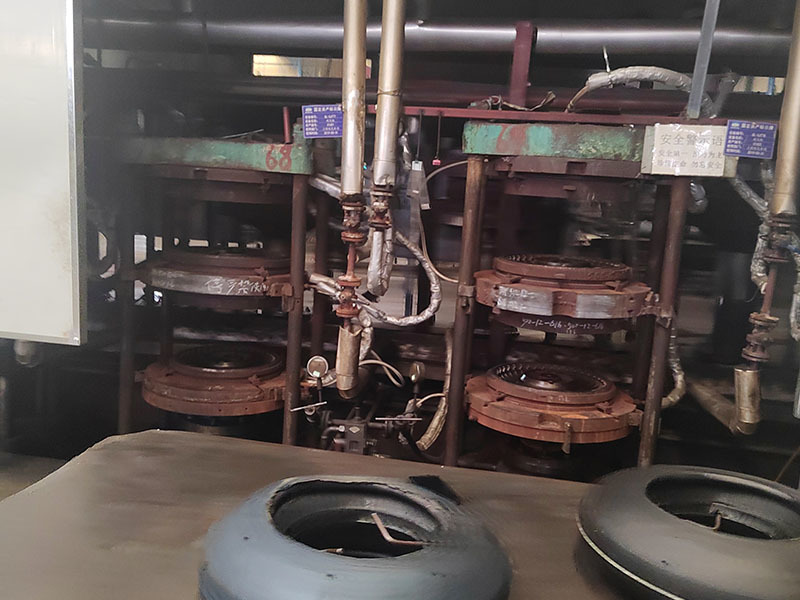

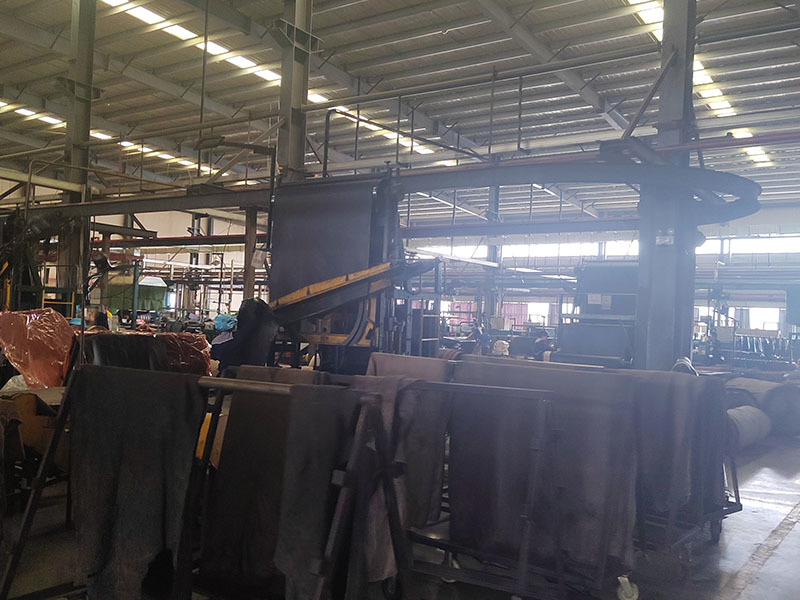

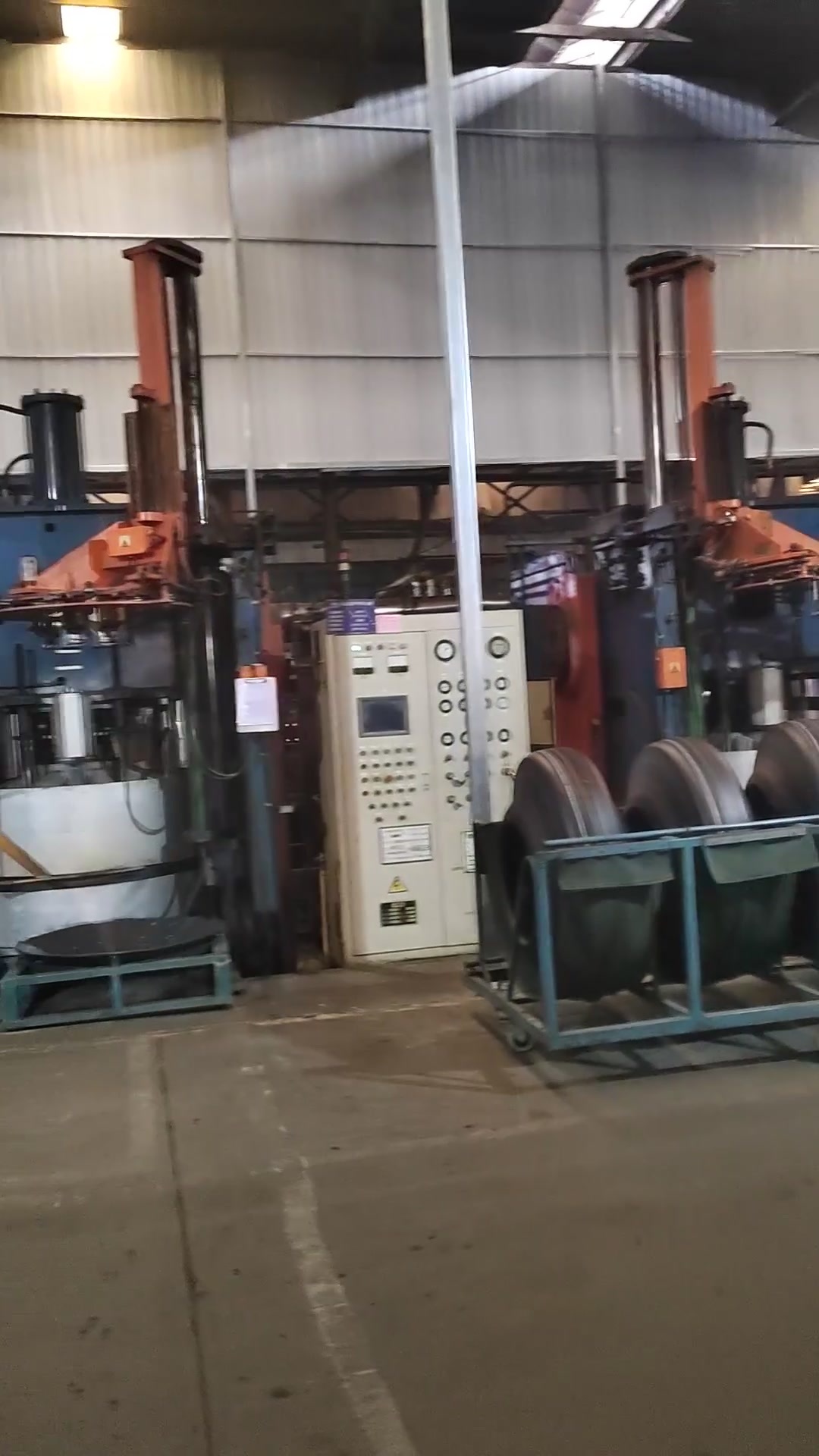

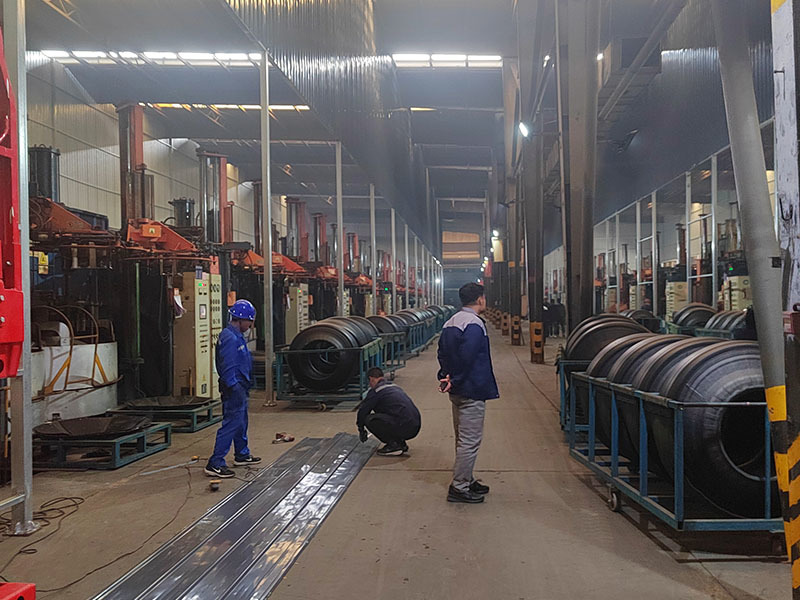

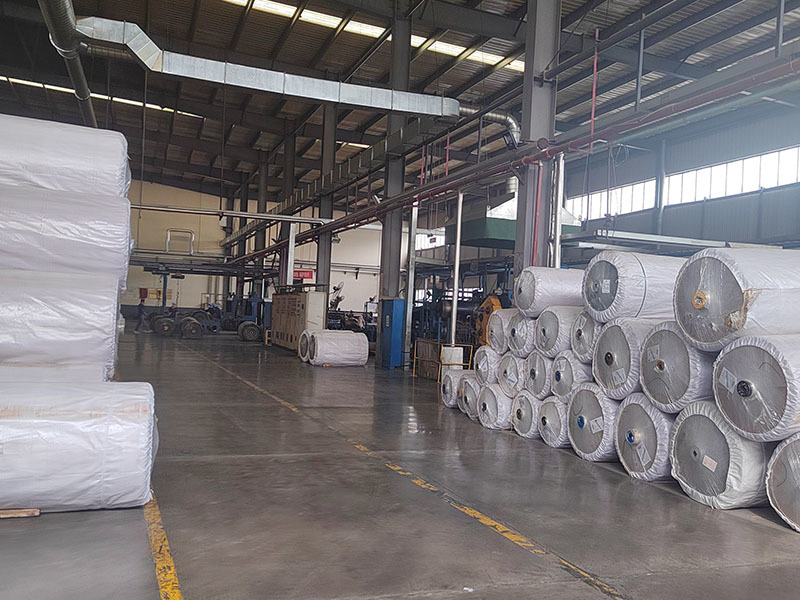

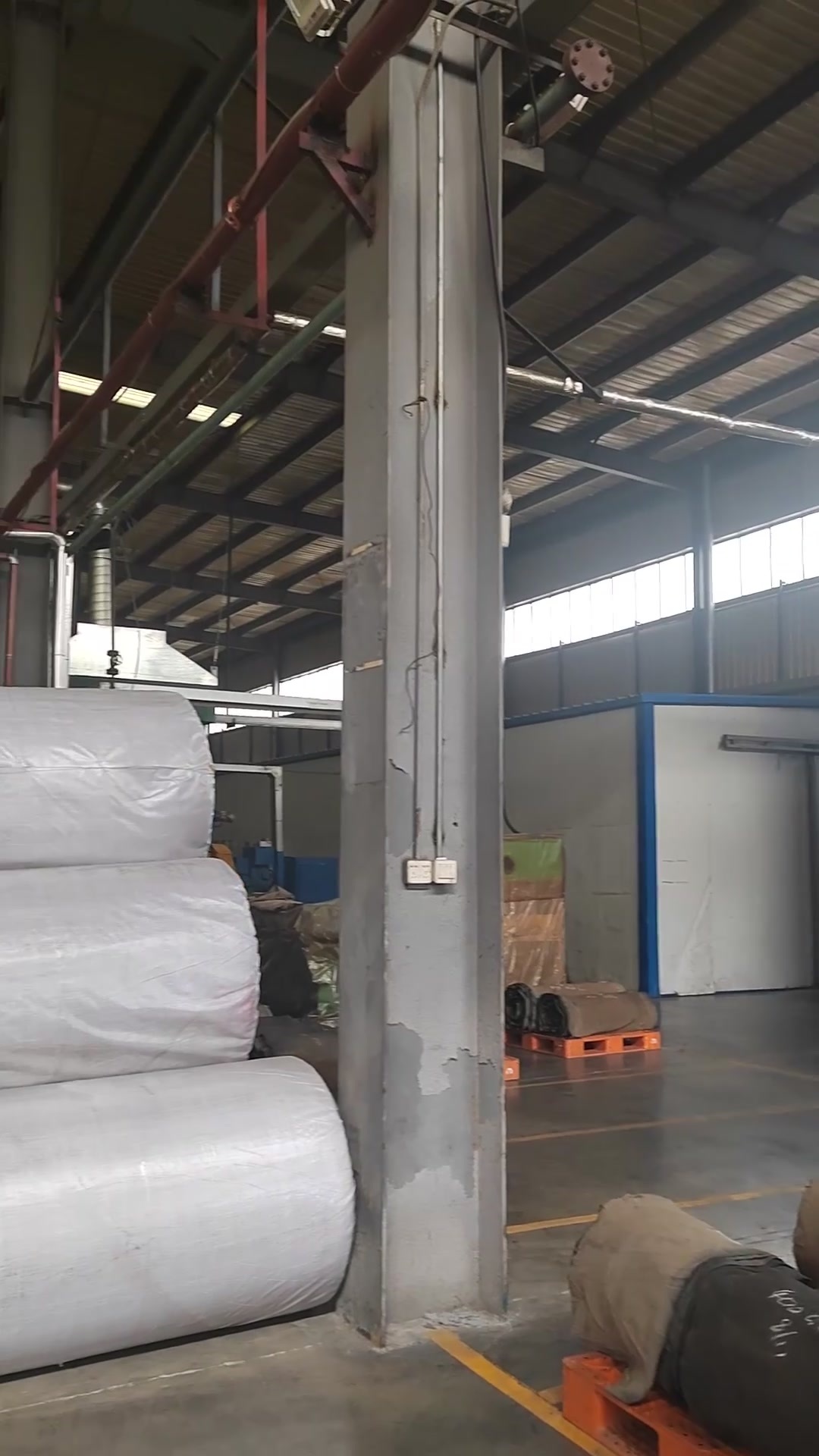

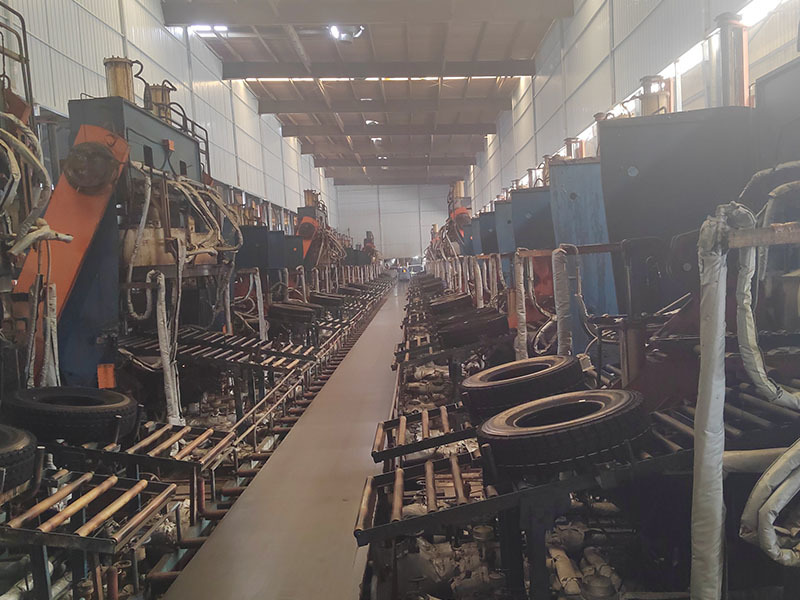

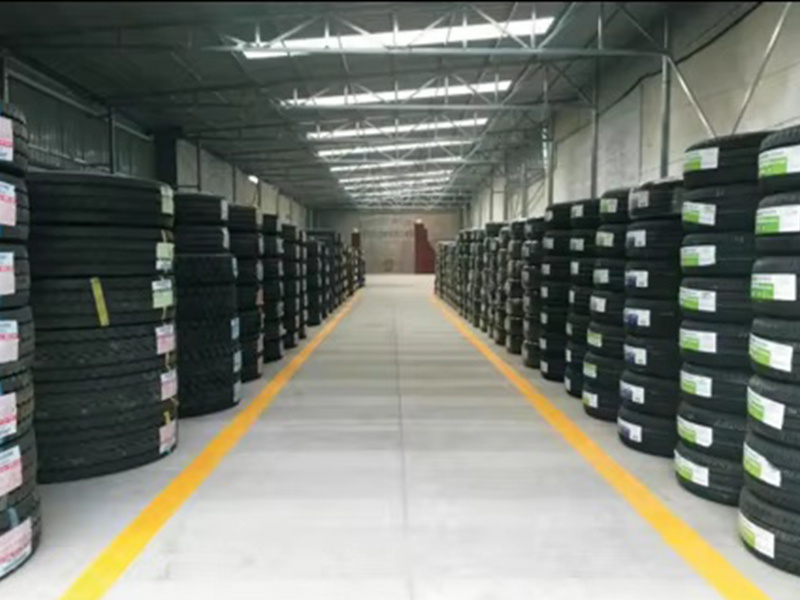

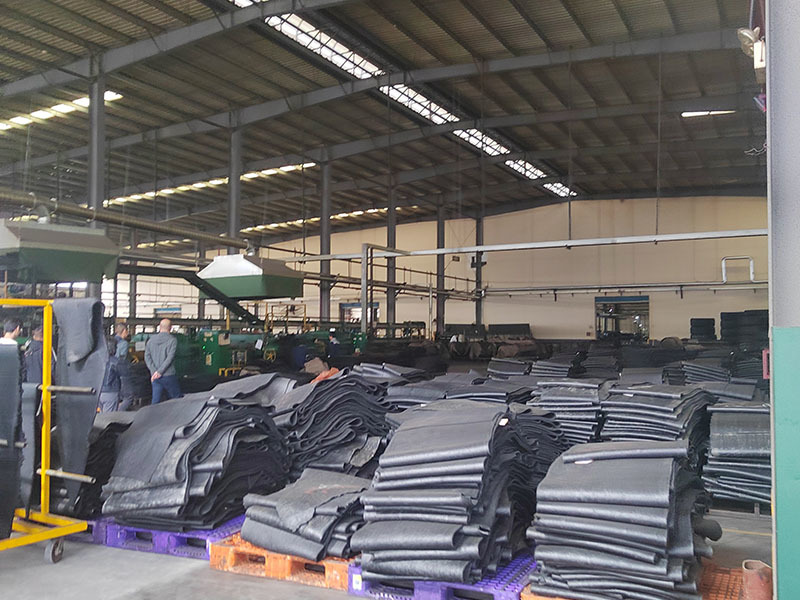

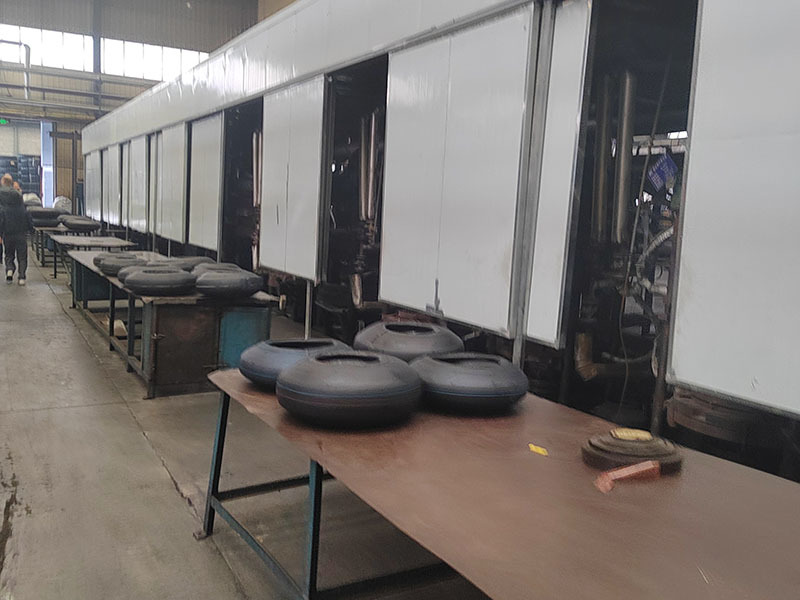

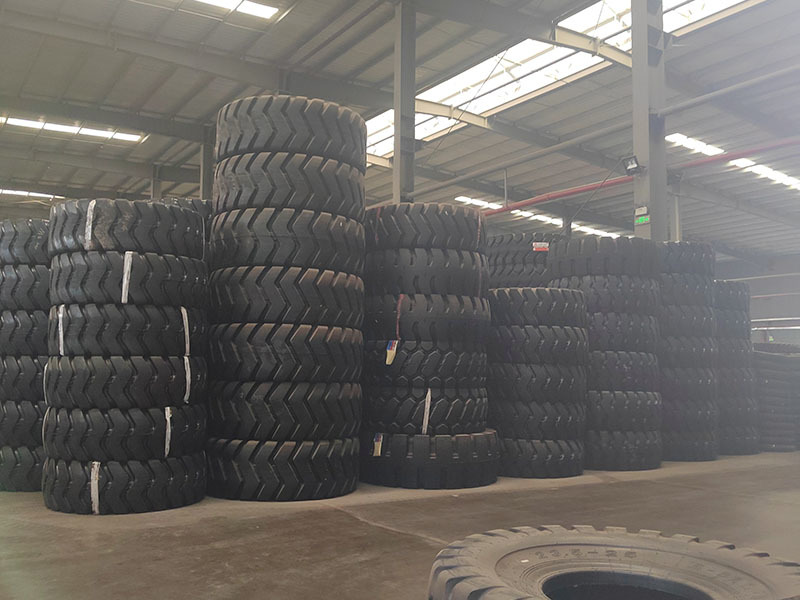

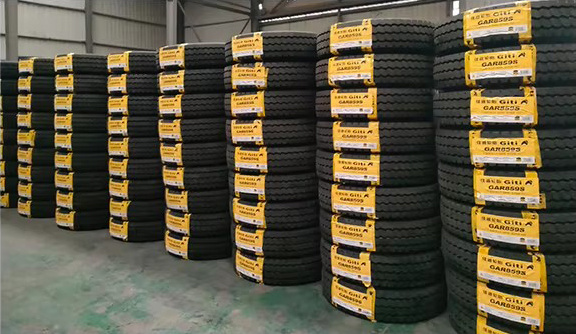

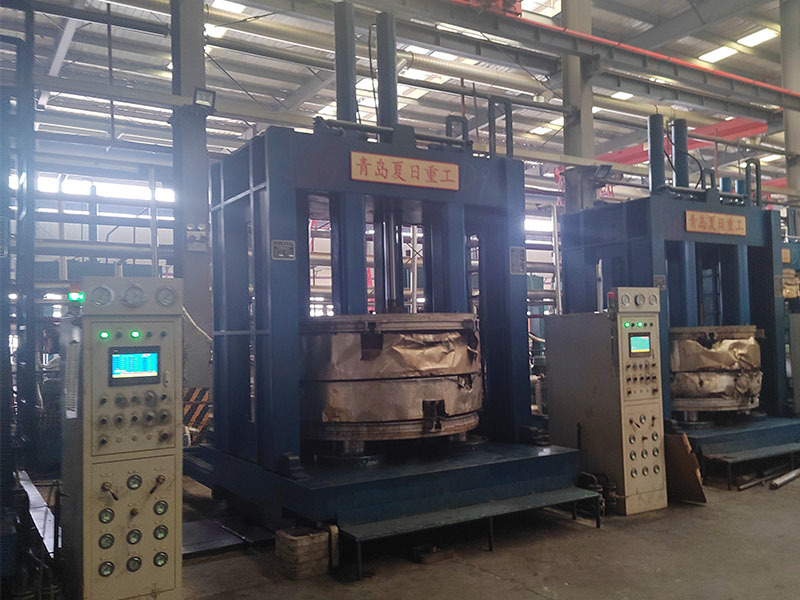

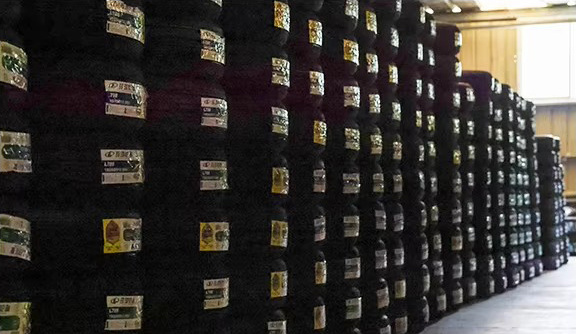

Production
